Tube Connector, TUBE-66201
$41.00
Tube Connector
Description
SAE Products® tube connectors thread into Group 1 and Group 2 junction blocks and are used to connect 1/4″ and 1/8″ tubing between junction blocks and lubrication points.
Specifications
| Weight | 0.07 lbs |
|---|---|
| Dimensions | 1.5 × 0.5 × 0.5 in |
| Material | Brass |

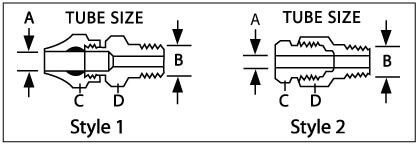

| Style | 1 |
| Product Type | 90° |
| (a) Dimension (in) | 1/4 |
| (b) Dimension (in) | 1/8 NPT |
| Hex (c) Dimension (in) | 9/16 |
| Hex (d) Dimension (in) | 7/16 |
