Grease Fitting Junction Block, SAE-14563
$90.00
Group 2 junction blocks
Description
SAE Products® Group 2 junction blocks have 9/32″ dia. mounting holes for use with 1/4″ dia. mounting bolts. Mounting holes are perpendicular to inlet passages allowing only vertical positioning of lubricant inlet passages. For 1/8″ NPT grease fittings only. Junction blocks are made of carbon steel.
Specifications
| Weight | 0.46 lbs |
|---|---|
| Dimensions | 4 × 1 × 1 in |
| Style | 2 |
| Product Type | Group 2 Junction Block |
| Number Of Inlets | 4 |

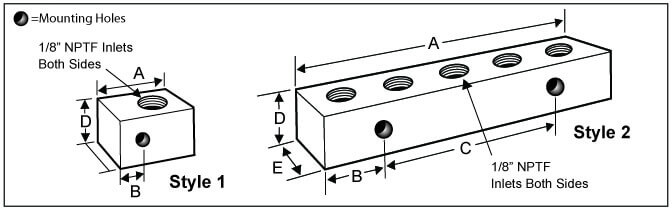

| (a) Dimension (in) | 3-3/4 |
| (a) Dimension (mm) | 95.3 |
| (b) Dimension (in) | 7/8 |
| (b) Dimension (mm) | 22.2 |
| (c) Dimension (in) | 2 |
| (c) Dimension (mm) | 50.8 |
| (d) Dimension (in) | 3/4 |
| (d) Dimension (mm) | 19.1 |
| (e) Dimension (in) | 3/4 |
| (e) Dimension (mm) | 19.1 |
