3/8″-19 BSPP Button Head Grease Fitting
3/8″-19 BSPP BUTTONHEAD LONG BSPP BUTTON HEAD GREASE FITTING
Description

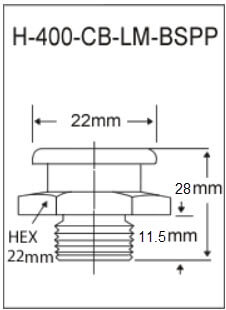

SAE Products 3/8″-19 BSPP button head grease fittings are commonly referred to as 3/8″-19 BSPP button head zerk fittings or BSPP (British Standard Pipe Parallel) grease fittings. Below is a drawing of SAE Products H-400-CB-LM-BSPP grease fitting. For more information on our BSPP thread fittings call us toll free at 1-800-588-8480.
Specifications
| Product Type | Straight |
|---|---|
| Thread | 3/8"-19 BSPP |
| Figure | 29 |
| Overall Length (mm) - A | 28 |
| Shank Length (mm) - B | 11.5 |
| Hex Size (mm) - X | 22 |
| Extended Neck (mm) | 11 |
