5/16″-24 UNF Brass Grease Fitting / Zerk Fitting
5/16″-24 UNF / STRAIGHT BRASS GREASE FITTING
Description

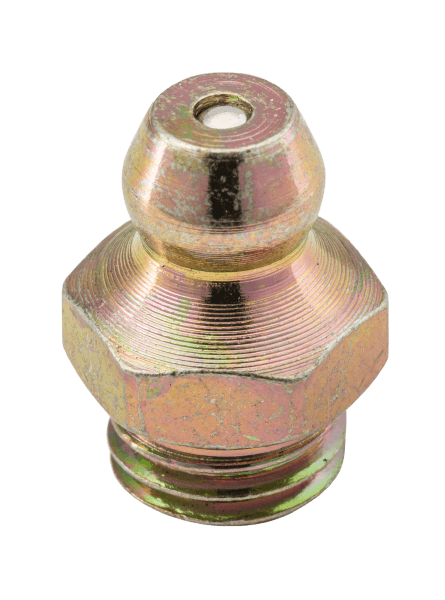

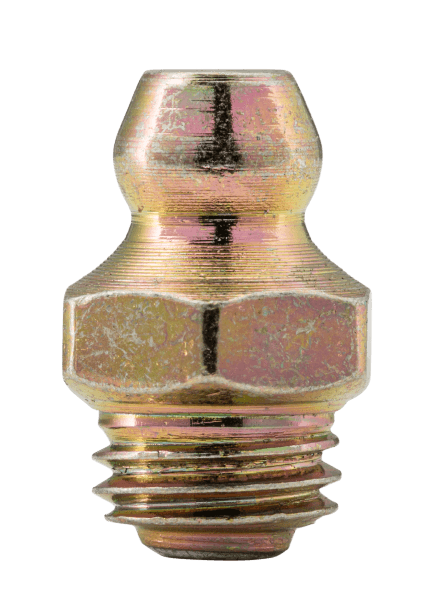

SAE Products 5/16″-24 UNF brass grease fittings are commonly referred to as 5/16″-24 UNF brass zerk fittings or 5/16″-24 UNF brass grease nipples. Below is a drawing and picture of SAE Products H-51624-B 5/16″-24 UNF brass grease fitting. For more information call 1-800-588-8480.
Specifications
| Product Type | Straight |
|---|---|
| Thread | 5/16"-24 UNF |
| Figure | 1 |
| Overall Length (mm) - A | 18 |
| Shank Length (mm) - B | 5.5 |
| Hex Size (mm) - X | 9 |
