Remote Grease Fitting Systems
Group 1 Grease Fitting Junction Blocks
SAE Products® Group 1 junction blocks have 11/32″ diameter mounting holes at 90 deg. intervals, for use with 5/16″ diameter mounting bolts. This permits horizontal or vertical positioning of lubricant inlet passages. For use with 1/8″ NPT grease fittings only. Junction blocks are made of carbon steel.
| SAE Number | Number Of Inlets | A | B | C | D | E | Price | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | in | mm | in | mm | in | mm | ||||
| SAE-13147 | 3 | 2-3/4 | 69.9 | 7/8 | 22.2 | 1 | 25.4 | 3/4 | 19.1 | 3/4 | 19.1 | $96.00 | View Product > |
| SAE-13148 | 6 | 5-3/4 | 146.1 | 7/8 | 22.2 | 4 | 101.6 | 3/4 | 19.1 | 3/4 | 19.1 | $102.00 | View Product > |
Group 2 Grease Fitting Junction Blocks
SAE Products® Group 2 junction blocks have 9/32″ dia. mounting holes for use with 1/4″ dia. mounting bolts. Mounting holes are perpendicular to inlet passages allowing only vertical positioning of lubricant inlet passages. For 1/8″ NPT grease fittings only. Junction blocks are made of carbon steel.
| SAE Number | Style | Number Of Inlets | A | B | C | D | E | Price | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | in | mm | in | mm | in | mm | |||||
| SAE-14570 | 1 | 1 | 1-1/4 | 31.8 | 3/8 | 9.5 | - | - | 3/4 | 19.1 | 3/4 | 19.1 | $84.00 | View Product > |
| SAE-14562 | 1 | 2 | 1-3/4 | 44.5 | 7/8 | 22.2 | - | - | 3/4 | 19.1 | 3/4 | 19.1 | $84.00 | View Product > |
| SAE-14771 | 2 | 3 | 2-3/4 | 69.9 | 7/8 | 22.2 | 1 | 25.4 | 3/4 | 19.1 | 3/4 | 19.1 | $96.00 | View Product > |
| SAE-14563 | 2 | 4 | 3-3/4 | 95.3 | 7/8 | 22.2 | 2 | 50.8 | 3/4 | 19.1 | 3/4 | 19.1 | $90.00 | View Product > |
| SAE-14564 | 2 | 5 | 4-3/4 | 120.7 | 7/8 | 22.2 | 3 | 76.2 | 3/4 | 19.1 | 3/4 | 19.1 | $108.00 | View Product > |
| SAE-14772 | 2 | 6 | 5-3/4 | 146.1 | 7/8 | 22.2 | 4 | 101.6 | 3/4 | 19.1 | 3/4 | 19.1 | $102.00 | View Product > |

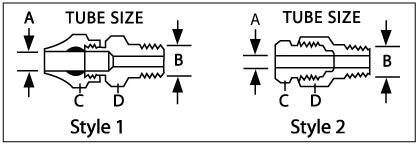

Tube Connectors
SAE Products® tube connectors thread into Group 1 and Group 2 junction blocks and are used to connect 1/4″ and 1/8″ tubing between junction blocks and lubrication points.
| SAE Number | Material | Style | A (in) | B (in) | Hex (C) (in) | Hex (D) (in) | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|
| TUBE-66200 | Brass | 1 | 1/4 | 1/8 NPT | 1/2 | 7/16 | Straight | $30.00 | View Product > |
| TUBE-66201 | Brass | 1 | 1/4 | 1/8 NPT | 9/16 | 7/16 | 90° | $41.00 | View Product > |
| TUBE-66414 | Brass | 2 | 1/8 | 1/8 NPT | 5/16 | 7/16 | 90° | $36.00 | View Product > |
| TUBE-66415 | Brass | 2 | 1/8 | 1/8 NPT | 5/16 | 7/16 | Straight | $36.00 | View Product > |
| TUBE-66714 | Brass | 2 | 1/8 | 1/4-28 thd. | 5/16 | 7/16 | Straight | $30.00 | View Product > |
| TUBE-66716 | Brass | 2 | 1/8 | 1/4-28 thd. | 5/16 | 7/16 | 90° | $30.00 | View Product > |
Compression Nuts
SAE Products® compression nuts are for use with style tube connectors and feed lines.
| SAE Number | Material | Thread | Use With Tube Connector | For O.D. Tubing Size (in) | Price | |
|---|---|---|---|---|---|---|
| NUT-66260 | Brass | 5/16"-24 UNS | Style 2 | 1/8 | $9.00 | View Product > |
| NUT-68464 | Brass | 7/16"-24 UNS | Style 1 | 1/4 | $9.00 | View Product > |
| SLV-68462 | Brass | - | Style 1 | 1/4 | $9.00 | View Product > |
Bulkhead Bearing Block Connectors
SAE Products® bulkhead connectors mount directly to bearing blocks and other lubrication points. To use connect one end of a whip hose, tube connector, or feed line hose into a junction block inlet and connect the other end into the bulkhead connector.
| SAE Number | Material | Female (A) | Male (B) | Female (C) | D (in) | E (in) | F (in) | Price | |
|---|---|---|---|---|---|---|---|---|---|
| SAE-13154 | Carbon Steel | 1/8"-27 NPTF | 1/8"-27 NPSM | 1/4"-28 UNF | 0.88 | 0.38 | 1/2 | $12.00 | View Product > |
| SAE-13155 | Carbon Steel | 1/8"-27 NPTF | 1/8"-27 NPSM | 1/4"-28 UNF | 1 | 0.38 | 1/2 | $12.00 | View Product > |
| SAE-14054 | Carbon Steel | 1/8"-27 NPTF | 1/8"-27 NPSM | 1/4"-28 UNF | 0.88 | 0.44 | 1/2 | $14.00 | View Product > |
| SAE-51055 | Carbon Steel | Lock Nut 1/8″ N.P.S.M. thread | $9.00 | View Product > | |||||
Feed Line Swivels
SAE Products® feed line swivels connect to junction blocks inlets & allow hoses or tubing to swivel during remote greasing. All models have a single swivel section and Buna N seals.
| SAE Number | Material | Style | A (Inlet) (in) | B (Outlet) (in) | C (Length) (in) | Price | |
|---|---|---|---|---|---|---|---|
| SWV-66717 | Steel | 1 | 1/8" O.D Tube | 1/8" NPT (M) | 1-1/4" | $72.00 | View Product > |
| SWV-66717-S | Stainless Steel | 1 | 1/8" O.D Tube | 1/8" NPT (M) | 1-1/4" | $114.00 | View Product > |
| SWV-83722 | Steel | 2 | 1/8" NPT (F) | 1/8" NPT (F) | 1-3/8" | $66.00 | View Product > |
| SWV-83722-S | Stainless Steel | 1 | 1/8" O.D Tube | 1/4"-28 (M) | 15/16" | $84.00 | View Product > |
| SWV-91048 | Steel | 2 | 1/8" NPT (F) | 1/8" NPT (M) | 1-1/4" | $48.00 | View Product > |
| SWV-91048-S | Stainless Steel | 2 | 1/8" NPT (F) | 1/8" NPT (F) | 1-1/4" | $114.00 | View Product > |
| SWV-91308 | Steel | 3 | 1/8" NPT (F) | 1/8" NPT (M) | 1-1/4" | $42.00 | View Product > |
Lubricant Feed Line Hoses
SAE Products® feed line hoses allow lubricant to flow between junction blocks and lubrication points. Made from nylon tubing with a dacron braid and polyurethane cover. Pre-filled with NLGI grade 1 grease.
Hose end part number SAE-246002 sold separately.
| SAE Number | Material | Type | Grease Filled | Length (ft) | OD (in) | ID (in) | Burst Pressure (psi) | Working Pressure (psi) | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SAE-241286 | Nylon | Coil | Yes | 26 | 5/16 | 1/8 | 10000 | 4000 | $114.00 | View Product > |
| SAE-241287 | Nylon | Coil | Yes | 35 | 5/16 | 1/8 | 10000 | 4000 | $126.00 | View Product > |
| SAE-241288 | Nylon | Coil | Yes | 40 | 5/16 | 1/8 | 10000 | 4000 | $202.00 | View Product > |
| SAE-252717 | Nylon | Coil | No | 200 | 5/16 | 1/8 | 10000 | 4000 | $378.00 | View Product > |
| SAE-246002 | Steel | 1/8″ NPT field installable hose coupling (attaches to each end of feed line hose) | View Product > | $27.00 | ||||||

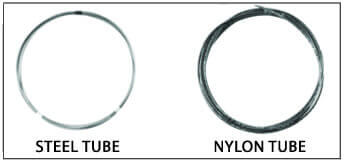

Steel & Nylon Tubing
SAE Products® tubing allows lubricant to flow between junction blocks and lubrication points. If specified below tubing comes pre-filled with NLGI grade 1 grease. Nylon tubing has a temperature range of -60° F to 200° F.
| SAE Number | Material | Type | Grease Filled | Length (ft) | O.D. (in) | Wall (in) | Working Pressure (psi) | Price | |
|---|---|---|---|---|---|---|---|---|---|
| SAE-62175 | Steel | Coil | No | 25 | 1/8 | 0.02 | 4400 | $72.00 | View Product > |
| SAE-62256 | Nylon | Coil | No | 25 | 1/8 | 0.026 | 625 | $54.00 | View Product > |
| SAE-62278 | Nylon | Coil | No | 100 | 1/8 | 0.026 | 625 | $120.00 | View Product > |
| SAE-62956 | Nylon | Coil | No | 500 | 1/8 | 0.026 | 625 | $528.00 | View Product > |
| SAE-62176 | Steel | Coil | No | 25 | 1/4 | 0.028 | 2800 | $84.00 | View Product > |
| SAE-242025 | Nylon | Coil | Yes | 25 | 1/4 | 0.05 | 625 | $72.00 | View Product > |
| SAE-274047 | Nylon | Coil | Yes | 25 | 1/4 | 0.062 | 500 | $72.00 | View Product > |
| SAE-242050 | Nylon | Coil | Yes | 50 | 1/4 | 0.05 | 625 | $155.00 | View Product > |
| SAE-274048 | Nylon | Coil | Yes | 50 | 1/4 | 0.062 | 500 | $138.00 | View Product > |
| SAE-62357 | Nylon | Coil | No | 100 | 1/4 | 0.05 | 625 | $222.00 | View Product > |
| SAE-274049 | Nylon | Coil | No | 100 | 1/4 | 0.062 | 500 | $222.00 | View Product > |
| SAE-274050 | Nylon | Coil | No | 500 | 1/4 | 0.062 | 500 | $726.00 | View Product > |
| SAE-62249 | Steel | Coil | No | 25 | 3/8 | 0.028 | 1850 | $120.00 | View Product > |
Stainless Steel Tubing
SAE Products® 304 Stainless Steel Tubing allows lubricant to flow between junction blocks and lubrication points in corrosive environments. Stainless Steel Tubing has higher working pressures than nylon or steel tubing.
Meets ASTM A0269 specs.
| SAE Number | Material | Type | Grease Filled | Length (ft) | O.D. (in) | Wall (in) | Working Pressure (psi) | Price | |
|---|---|---|---|---|---|---|---|---|---|
| SAE-62948-9 | Stainless Steel | Coil | No | 20 | 1/8 | 0.028 | 9000 | $228.00 | View Product > |
| SAE-62949-9 | Stainless Steel | Coil | No | 20 | 1/4 | 0.028 | 4480 | $152.00 | View Product > |
| SAE-62950-9 | Stainless Steel | Coil | No | 20 | 3/8 | 0.028 | 2980 | $150.00 | View Product > |
