Grease Gun Hoses / Assemblies

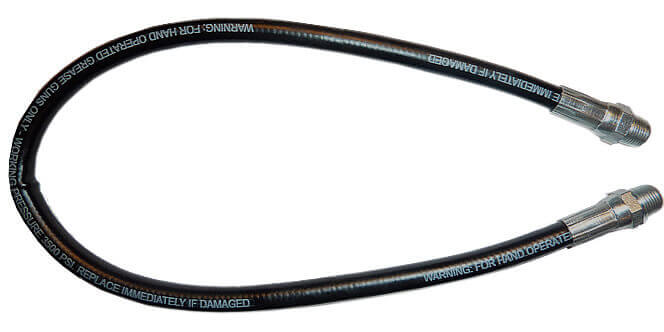

Standard Grease Gun Hoses
Standard grease gun hoses establish an optimal connection between your grease gun and lubrication spot. Hoses are made from flexible thermoplastic construction which prevents cracking or breaking and allows access to fittings in confined areas. Hose ends are Zinc plated steel. Click SAE part numbers for more information.
WARNING: For hand operated grease guns only.
| SAE Number | Length (in) | Hose Ends | Working Pressure (psi) | Burst Pressure (psi) | Spring Guard | Price | |
|---|---|---|---|---|---|---|---|
| GFHS-08 | 8 | 1/8" NPTF | 3500 | 11600 | No | $27.00 | View Product > |
| GFHS-12 | 12 | 1/8" NPTF | 3500 | 11600 | No | $33.00 | View Product > |
| GFHS-18 | 18 | 1/8" NPTF | 3500 | 11600 | No | $33.00 | View Product > |
| GFHS-18S | 18 | 1/8" NPTF | 4500 | 18000 | Yes | $60.00 | View Product > |
| GFHS-24 | 24 | 1/8" NPTF | 4800 | 12000 | No | $42.00 | View Product > |
| GFHS-36 | 36 | 1/8" NPTF | 4800 | 12000 | No | $42.00 | View Product > |
| GFHS-36S | 36 | 1/8" NPTF | 4500 | 18000 | Yes | $96.00 | View Product > |
Heavy Duty Grease Gun Hoses
Heavy duty hoses have higher working and bursting pressures than standard hoses and are designed for air, battery, or hand-operated guns. Hoses are made from polyamide with polyurethane sheathing, reinforced in tear resistant polyester. Hoses ends are heavy duty Zinc plated steel. Click SAE part numbers for more information.
USE WITH: Air, Battery, or Hand Operated Guns
| SAE Number | Length (in) | Hose Ends | Working Pressure (psi) | Burst Pressure (psi) | Spring Guard | Price | |
|---|---|---|---|---|---|---|---|
| GFHH-12 | 12 | 1/8" NPTF | 5800 | 13775 | No | $42.00 | View Product > |
| GFHH-12G | 12 | 1/8" NPTF | 6000 | 23925 | No | $48.00 | View Product > |
| GFHH-18 | 18 | 1/8" NPTF | 5800 | 13775 | No | $46.00 | View Product > |
| GFHH-20G | 20 | 1/8" NPTF | 6000 | 23925 | No | $60.00 | View Product > |
| GFHH-18S | 18 | 7/16"-27 Inlet / 1/8" NPT Outlet | 7500 | 28000 | Yes | $84.00 | View Product > |
| GFHH-24S | 24 | 7/16"-27 Inlet / 1/8" NPT Outlet | 7500 | 28000 | Yes | $137.00 | View Product > |
| GFHH-30S | 30 | 7/16"-27 Inlet / 1/8" NPT Outlet | 7500 | 28000 | Yes | $90.00 | View Product > |
| GFHH-36S | 36 | 7/16"-27 Inlet / 1/8" NPT Outlet | 7500 | 28000 | Yes | $102.00 | View Product > |
Metric Thread Grease Gun Hoses
Metric thread grease gun hoses have M10 x 1 thread hose ends and high burst pressure ratings ideal for air operated guns and heavy duty use. Hoses have a synthetic rubber outer layer and polyethylene reinforced double steel wire braid inner layer. Hose ends are heavy duty zinc plated steel. For air, battery, or hand-operated guns.
Click SAE part numbers for more information.
USE WITH: Air, Battery, or Hand Operated Guns
| SAE Number | Length (in) | Hose Ends | Working Pressure (psi) | Burst Pressure (psi) | Price | |
|---|---|---|---|---|---|---|
| GFHH-12M | 12 | M10X1 | 5800 | 24000 | $90.00 | View Product > |
| GFHH-20M | 20 | M10X1 | 5800 | 24000 | $90.00 | View Product > |

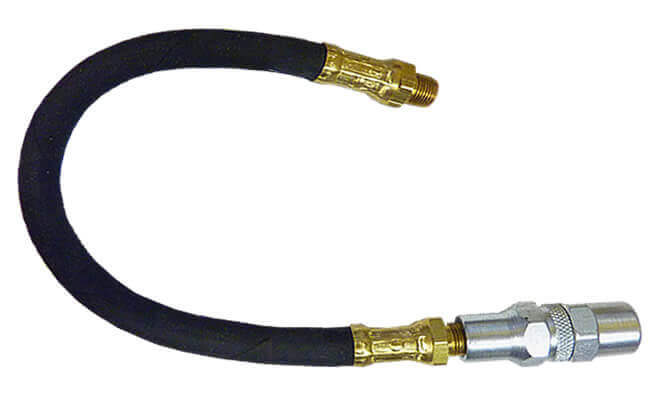

Hydraulic Coupler Assemblies
Hydraulic coupler assemblies are standard duty hoses attached to either standard duty (rubber seal) or heavy duty (metal seal) hydraulic couplers. Hoses are made from flexible thermoplastic. Couplers are made from Zinc plated steel. Click SAE part numbers for more information.
WARNING: For hand operated grease guns only.
| SAE Number | Length (in) | Coupler | Hose Ends | Working Pressure (psi) | Burst Pressure (psi) | Price | |
|---|---|---|---|---|---|---|---|
| HCHA-12S | 12 | Standard - Hydraulic | 1/8" NPTF | 4800 | 12000 | $54.00 | View Product > |
| HCHA-18S | 18 | Standard - Hydraulic | 1/8" NPTF | 4800 | 12000 | $60.00 | View Product > |
| HCHA-12H | 12 | Heavy Duty - Hydraulic | 1/8" NPTF | 4800 | 12000 | $60.00 | View Product > |
| HCHA-18H | 18 | Heavy Duty - Hydraulic | 1/8" NPTF | 4800 | 12000 | $66.00 | View Product > |
Button Head Coupler Assemblies
Button head coupler assemblies are standard duty hoses attached to either standard button head couplers (5/8″ dia. button heads) or giant button head couplers (7/8″ dia. button heads). Hoses are made from flexible thermoplastic. Couplers include rubber inserts and are made from Zinc plated steel. Swivel is included on hose end for ease of operation. Click SAE part numbers for more information.
WARNING: For hand operated grease guns only.
| SAE Number | Length (in) | Coupler | Hose Ends | Working Pressure (psi) | Burst Pressure (psi) | Price | |
|---|---|---|---|---|---|---|---|
| BCHA-12S | 12 | Standard - Button Head | 1/8" NPTF | 4800 | 12000 | $108.00 | View Product > |
| BCHA-18S | 18 | Standard - Button Head | 1/8" NPTF | 4800 | 12000 | $114.00 | View Product > |
| BCHA-12H | 12 | Giant - Button Head | 1/8" NPTF | 4800 | 12000 | $126.00 | View Product > |
| BCHA-18H | 18 | Giant - Button Head | 1/8" NPTF | 4800 | 12000 | $145.00 | View Product > |
Grease Gun Extension Pipes
Grease gun extension pipes for grease guns permit ease of attachment to fittings. Manufactured from heavy duty steel tubing and Zinc plated for protection. High strength rolled threads on both ends provide a tight seal. Click SAE part numbers for more information.
WARNING: For hand operated grease guns only.
| SAE Number | Length (in) | Angle | Hose Ends | Working Pressure (psi) | Price | |
|---|---|---|---|---|---|---|
| RES-06 | 6 | Straight | 1/8" NPTF | 6000 | $21.00 | View Product > |
| REC-06 | 6 | Curved | 1/8" NPTF | 6000 | $21.00 | View Product > |
| REC-M6 | 6 | Curved | (M10 x 1) | 6000 | $27.00 | View Product > |
| REC-12 | 12 | Curved | 1/8" NPTF | 6000 | $34.00 | View Product > |
| REC-18 | 18 | Curved | 1/8" NPTF | 6000 | $36.00 | View Product > |
