Pin Type Grease Fittings

Pin Type Grease Fittings are engineered to produce a positive locking action when used with pin type couplers. SAE Products® pin type fittings provide a high-pressure leakproof seal.

Required Accessories: Pin Type Couplers

1/8" PTF Pin Type Grease Fittings

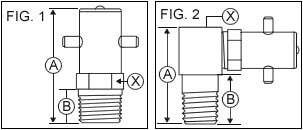

SAE Number	Thread	Type	Fig	A (in)	B (in)	X (in)	Alemite #

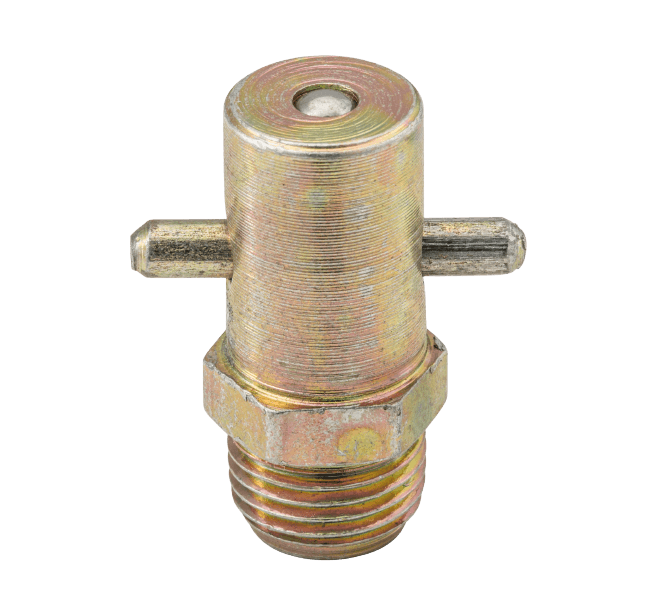

H-200-PIN-S	1/8" PTF	Straight	1	31/32	17/64	7/16	-	View Product >
H-200-PIN-B	1/8" PTF	Straight	1	31/32	17/64	7/16	A336	View Product >
H-200-PIN-M	1/8" PTF	Straight	1	31/32	17/64	7/16	M336	View Product >
H-245-PIN-B	1/8" PTF	45°	-	1-1/2	5/16	1-9/16	A684	View Product >
H-290-PIN-B	1/8" PTF	90°	2	1-1/16	17/64	1/2	A358	View Product >

1/4" NPTF Pin Type Grease Fittings

SAE Number	Thread	Type	Fig	A (in)	B (in)	X (in)	Alemite #
H-300-PIN-B	1/4" NPTF	Straight	1	11/32	17/64	17/32	A359	View Product >
H-390-PIN-N	1/4" NPTF	90°	2	1-5/16	3/5	9/16	A361	View Product >
H-300-PIN-S	1/4" NPTF	Straight	1	11/32	17/64	17/32	-	View Product >

3/8" NPT Pin Type Grease Fittings

SAE Number	Thread	Type	Fig	A (in)	B (in)	X (in)
H-400-PIN-S	3/8" NPT	Straight	1	-	-	-	View Product >
