Monel Grease Fittings
Monel Grease Fittings withstand the most severe corrosive environments. Monel is a nickel/copper alloy that is highly resistant to corrosion. Monel grease fittings offer greater corrosion resistance than stainless steel. Monel grease fittings are also referred to as Monel zerk fittings, Monel lubrication fittings, or a Monel zerk.
| SAE Number | Thread | Type | Fig | A (in) | B (in) | X (in) | Alemite # | |
|---|---|---|---|---|---|---|---|---|

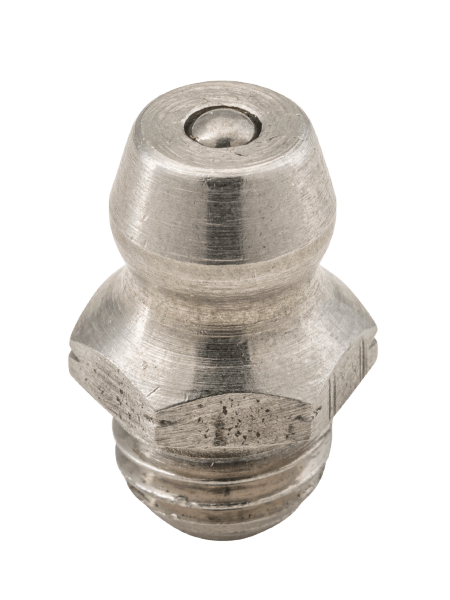

| H-100-MONEL | 1/4"-28 Taper | Straight | 1 | 17/32 | 3/16 | 5/16 | Alemite 1966-B | View Product > |
| H-145-MONEL | 1/4"-28 Taper | 45° | 2 | 13/16 | 13/64 | 5/8 | Alemite 1968-B | View Product > |
| H-190-MONEL | 1/4"-28 Taper | 90° | 3 | 3/4 | 13/64 | 3/8 | Alemite 1969-B | View Product > |
| H-200-MONEL | 1/8" PTF | Straight | 1 | 3/4 | 5/16 | 7/16 | Alemite 1961-B | View Product > |
| H-200-C-MONEL | 1/8" PTF | Straight | 1 | 5/8 | 9/32 | 7/16 | Alemite1962-B | View Product > |
| H-230-MONEL | 1/8" PTF | 30° | 2 | 1-1/4 | 11/32 | 7/16 | Alemite 1921-B | View Product > |
| H-267-MONEL | 1/8" PTF | 67.5° | 2 | 61/64 | 11/32 | 7/16 | Alemite 1922-B | View Product > |
| H-290-MONEL | 1/8" PTF | 90° | 3 | 7/8 | 11/32 | 7/16 | Alemite 1923-B | View Product > |
