Double Head Grease Fittings

Double Head Grease Fittings are precision made of zinc-plated steel and include a ball check to keep out dirt and debris. SAE Products® double headed fittings allow alternative or simultaneous greasing by means of two heads.

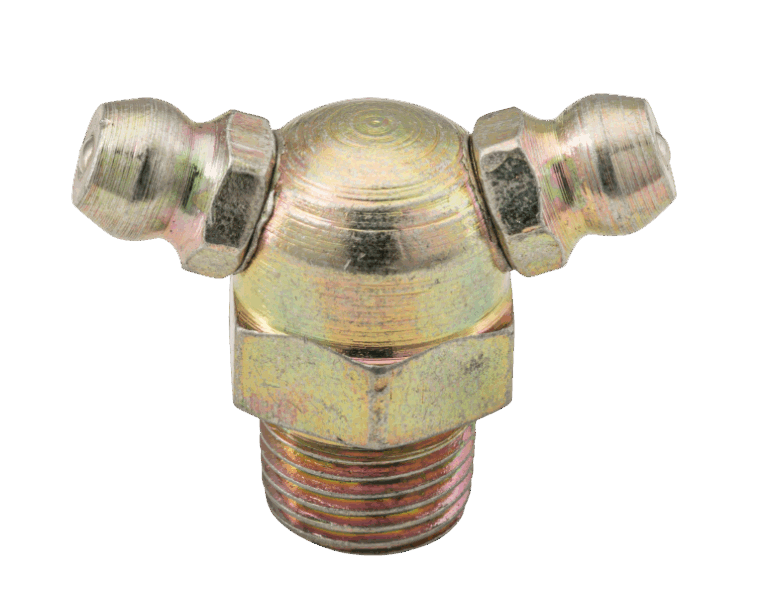

1/8" PTF Double Head Grease Fitting

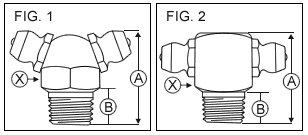

SAE Number	Thread	Type	Fig	A (in)	B (in)	X (in)	Alemite #
H-270-DH	1/8" PTF	70 Deg.	1	27/32	19/64	1/2	369574	View Product >

6 MM Double Head Grease Fitting

SAE Number	Thread	Type	Fig	A (mm)	B (mm)	X (mm)
M6-90-DH	6MM X 1MM	90 Deg.	2	18	5.5	9	View Product >

8 MM Double Head Grease Fittings

SAE Number	Thread	Type	Fig	A (mm)	B (mm)	X (mm)
M8-90-DH	8MM X 1MM	90 Deg.	2	18	5.5	9	View Product >
M8-90-DHL	8MM X 1MM	90 Deg.	2	18	5.5	11	View Product >
M8-67-DH	8MM X 1MM	67 Deg.	1	20	5.5	11	View Product >
M8-25-90-DH	8MM X 1.25MM	90 Deg.	2	18	5.5	9	View Product >
M8-25-67-DH	8MM X 1.25MM	67 Deg.	1	20	5.5	11	View Product >
M8-25-90-DHL	8MM X 1.25MM	67 Deg.	2	24	5.5	9	View Product >
