Ball Type Grease Fittings
Ball-Type Grease Fittings are suitable for lubrication points, which have to be repeatedly lubricated in a fast and efficient way. Ball-Type Grease Fittings require a ball-type grease coupler which saves time by not locking onto the grease fitting like a traditional coupler. SAE Products® Ball-Type Grease Fittings are made according to the former DIN 3402.
5mm Ball-Type Grease Fittings

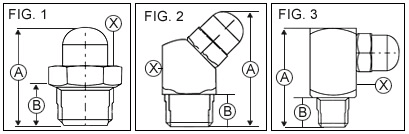

| SAE Number | Thread | Type | Fig | A (mm) | B (mm) | X (mm) | |
|---|---|---|---|---|---|---|---|
| M5-8-BALL | 5MM X 0.8MM | Straight | 1 | 14 | 5.5 | 7 | View Product > |
| M5-8-BALL-B | 5MM X 0.8MM | Straight | 1 | 14 | 5.5 | 7 | View Product > |
6mm Ball-Type Grease Fittings

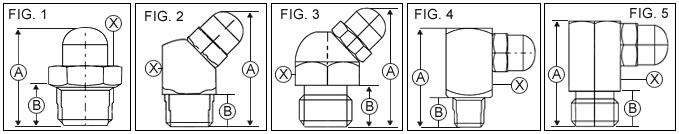

| SAE Number | Thread | Type | Fig | A (mm) | B (mm) | X (mm) | |
|---|---|---|---|---|---|---|---|

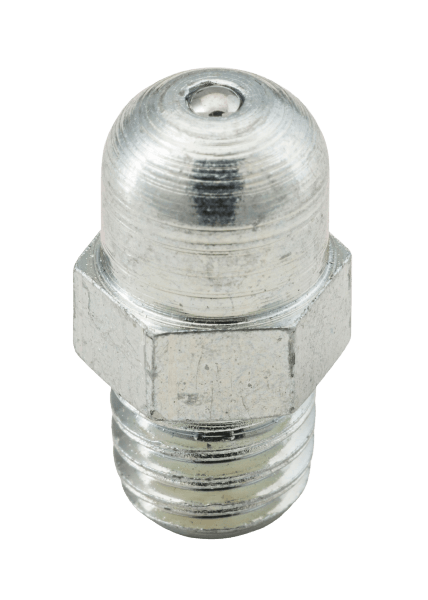

| M6-1-BALL | 6MM X 1MM | Straight | 1 | 14 | 5.5 | 7 | View Product > |
| M6-1-BALL-B | 6MM X 1MM | Straight | 1 | 14 | 5.5 | 7 | View Product > |
| M6-1-BALL-SS | 6MM X 1MM | Straight | 1 | 14 | 5.5 | 7 | View Product > |
| M6-75-BALL | 6MM X .75MM | Straight | 1 | 14 | 5.5 | 7 | View Product > |
| M6-75-BALL-B | 6MM X .75MM | Straight | 1 | 14 | 5.5 | 7 | View Product > |
| M6-45-BALL | 6MM X 1MM | 45° | 2 | 19 | 5.5 | 9 | View Product > |
| M6-90-BALL | 6MM X 1MM | 90° | 3 | 18 | 5.5 | 9 | View Product > |
7mm Ball-Type Grease Fittings
| SAE Number | Thread | Type | Fig | A (mm) | B (mm) | X (mm) | |
|---|---|---|---|---|---|---|---|
| M7-1-BALL | 7MM X 1MM | Straight | 1 | 14 | 5.5 | 9 | View Product > |
8mm Ball-Type Grease Fittings
| SAE Number | Thread | Type | Fig | A (mm) | B (mm) | X (mm) | |
|---|---|---|---|---|---|---|---|
| M8-1-BALL | 8MM X 1MM | Straight | 1 | 14 | 5.5 | 9 | View Product > |
| M8-1-BALL-B | 8MM X 1MM | Straight | 1 | 14 | 5.5 | 9 | View Product > |
| M8-1-BALL-SS | 8MM X 1MM | Straight | 1 | 14 | 5.5 | 9 | View Product > |
| M8-45-BALL | 8MM X 1MM | 45° | 2 | 19 | 5.5 | 9 | View Product > |
| M8-90-BALL | 8MM X 1MM | 90° | 4 | 18 | 5.5 | 9 | View Product > |
| M8-125-BALL | 8MM X 1.25MM | Straight | 1 | 14 | 5.5 | 9 | View Product > |
| M8-125-45-BALL | 8MM X 1.25MM | 45° | 2 | 19 | 5.5 | 9 | View Product > |
| M8-125-45-BALL-B | 8MM X 1.25MM | 45° | 3 | 19 | 5.5 | 11 | View Product > |
| M8-125-45-BALL-BL | 8MM X 1.25MM | 45° | 3 | 20 | 5.5 | 11 | View Product > |
| M8-125-90-BALL | 8MM X 1.25MM | 90° | 4 | 18 | 5.5 | 9 | View Product > |
| M8-125-90-BALL-B | 8MM X 1.25MM | 90° | 5 | 18 | 5.5 | 9 | View Product > |
| M8-125-90-BALL-BL | 8MM X 1.25MM | 90° | 5 | 19 | 5.5 | 11 | View Product > |
10mm Ball-Type Grease Fittings
| SAE Number | Thread | Type | Fig | A (mm) | B (mm) | X (mm) | |
|---|---|---|---|---|---|---|---|
| M10-1-BALL | 10MM X 1MM | Straight | 1 | 14 | 5.5 | 11 | View Product > |
| M10-15-BALL | 10MM X 1.5MM | Straight | 1 | 14 | 5.5 | 11 | View Product > |
| M10-45-BALL | 10MM X 1MM | 45° | 2 | 14 | 5.5 | 11 | View Product > |
| M10-15-45-BALL | 10MM X 1.5MM | 45° | 3 | 27 | 5.5 | 11 | View Product > |
| M10-15-45-BALL-B | 10MM X 1.5MM | 45° | 3 | 20 | 5.5 | 11 | View Product > |
| M10-90-BALL | 10MM X 1MM | 90° | 4 | 18 | 5.5 | 11 | View Product > |
| M10-15-90-BALL-B | 10MM X 1.5MM | 90° | 5 | 19 | 5.5 | 11 | View Product > |
BSP Ball-Type Grease Fittings
| SAE Number | Thread | Type | Fig | A (mm) | B (mm) | X (mm) | |
|---|---|---|---|---|---|---|---|
| H-200-BSP-BALL | 1/8"-28 BSP | Straight | 1 | 14 | 5.5 | 11 | View Product > |
| H-200-BSP-BALL-B | 1/8"-28 BSP | Straight | 1 | 14 | 5.5 | 11 | View Product > |
| H-245-BSP-BALL | 1/8"-28 BSP | 45° | 4 | 14 | 5.5 | 11 | View Product > |
| H-245-BSP-BALL-B | 1/8"-28 BSP | 45° | 4 | 14 | 5.5 | 11 | View Product > |
| H-290-BSP-BALL | 1/8"-28 BSP | 90° | 5 | 22.5 | 6.5 | 14 | View Product > |
| H-300-BSP-BALL | 1/4"-19 BSP | Straight | 1 | 16 | 6.5 | 14 | View Product > |
| H-300-BSP-BALL-B | 1/4"-19 BSP | Straight | 1 | 16 | 6.5 | 14 | View Product > |
| H-345-BSP-BALL | 1/4"-19 BSP | 45° | 4 | 22 | 6.5 | 14 | View Product > |
| H-390-BSP-BALL | 1/4"-19 BSP | 90° | 5 | 22.5 | 6.5 | 14 | View Product > |
| H-400-BSP-BALL | 3/8"-19 BSP | Straight | 1 | 17.5 | 8 | 17 | View Product > |
Drive-In Ball-Type Grease Fittings
Mounting Instructions: Drive-In Tools are recommended to prevent fittings from breaking during installation. The exact size of the hole you drill for drive-in fittings depends on the material and must be determined by mounting tests. As a starting point the drill bore diameter corresponds to the nominal width of the thread size.
| SAE Number | Thread | Type | Fig | A (mm) | B (mm) | X (mm) | |
|---|---|---|---|---|---|---|---|
| K-6-BALL | 6mm Drive-In | Straight | 1 | 14 | 5.5 | 8 | View Product > |
| K-6-BALL-SS | 6mm Drive-In | Straight | 1 | 14 | 5.5 | 8 | View Product > |
| K-6-BALL-B | 6mm Drive-In | Straight | 1 | 14 | 5.5 | 8 | View Product > |
| K-6-BALL-BL | 6mm Drive-In | Straight | 1 | 15 | 6.5 | 8 | View Product > |
| K-645-BALL | 6mm Drive-In | 45° | 2 | 19 | 5.5 | 9 | View Product > |
| K-645-BALL-B | 6mm Drive-In | 45° | 3 | 21 | 7 | 9 | View Product > |
| K-690-BALL | 6mm Drive-In | 90° | 4 | 18 | 5.5 | 9 | View Product > |
| K-690-BALL-B | 6mm Drive-In | 45° | 5 | 18 | 5.5 | 9 | View Product > |
| K-690-BALL-BL | 6mm Drive-In | 90° | 5 | 19 | 5.5 | 11 | View Product > |
| K-8-BALL | 8mm Drive-In | Straight | 1 | 14 | 5.5 | 10 | View Product > |
| K-8-BALL-SS | 8mm Drive-In | Straight | 1 | 14 | 5.5 | 10 | View Product > |
| K-8-BALL-B | 8mm Drive-In | Straight | 1 | 14 | 5.5 | 10 | View Product > |
| K-845-BALL | 8mm Drive-In | 45° | 2 | 19 | 5.5 | 9 | View Product > |
| K-845-BALL-B | 8mm Drive-In | 45° | 3 | 21 | 7 | 9 | View Product > |
| K-890-BALL | 8mm Drive-In | 90° | 4 | 18 | 5.5 | 9 | View Product > |
| K-890-BALL-B | 8mm Drive-In | 90° | 5 | 19 | 5.5 | 11 | View Product > |
| K-10-BALL | 10mm Drive-In | Straight | 1 | 14 | 5.5 | 12 | View Product > |
| K-1045-BALL | 10mm Drive-In | 45° | 2 | 19 | 5.5 | 11 | View Product > |
