Air Vent Grease Fittings

Air Vent Grease Fittings are used on differentials, transmissions, and gear boxes. Vent fittings allow air to escape and enter as the internal pressure increases or decreases. The cap on Air Vent Grease Fittings prevent water or dirt from entering. Vent fittings must be installed above normal level of lubricant to allow air to escape when pressure rises. Air Vent Grease Fittings are also referred to as Air Vent Zerk Fittings, Air Vent Lubrication Fittings, Air Vent Grease Zerks, or Atmospheric Vents.

OPENING PRESSURE NOTE: 1″ of water = .03613 psi.

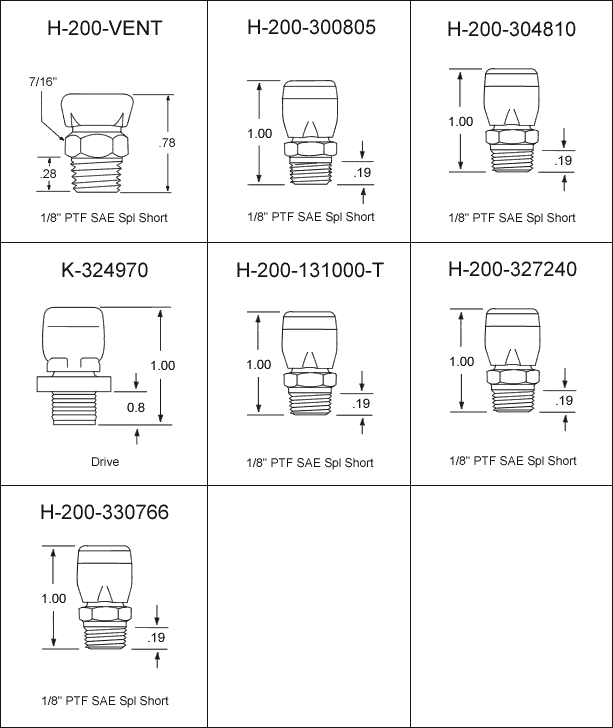

Air Vent Grease Fitting
SAE NumberThreadTypeFigOpening PressureA (in)B (in)Alemite #Lincoln #

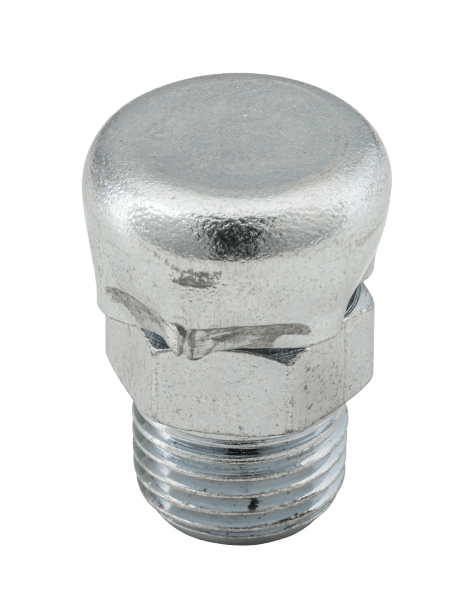

H-200-VENT1/8" PTF SAE Special ShortStraight13N/A0.780.283013705698View Product >
H-200-3008051/8" PTF SAE Special ShortStraight13Felt Filter10.19300805-View Product >
H-200-3048101/8" PTF SAE Special ShortStraight131-3" Water10.19304810-View Product >
K-324970DriveStraight136-12" Water10.8324970-View Product >
H-200-131000-T1/8" PTF SAE Special ShortStraight1312" Water Max.10.19131000-T-View Product >
H-200-3272401/8" PTF SAE Special ShortStraight131 to 1-1/2 psi10.19327240-View Product >
H-200-3307661/8" PTF SAE Special ShortStraight132-1/2 to 4 psi10.19330766-View Product >
