1/8"-27 Pipe Thread Grease Fittings

1/8″-27 PTF Pipe Thread Grease Fittings have 27 threads per inch. PTF fittings are sometimes generically referred to as 1/8″ NPT, and may be threaded into NPT or NPTF threaded holes. Thread sealant is recommended for use with NPT threaded holes. The large and strong threads on 1/8″-27 PTF pipe thread grease fittings are suited for industrial use.

SAE NumberProduct TypeFigABXAlemite #Lincoln #

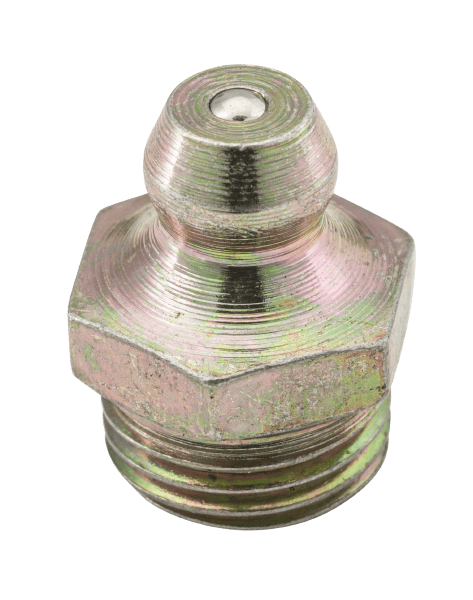

H-200-CStraight19/16″15/64″7/16″1644-B-View Product >
H-200Straight121/32″1/4″7/16″1610-BL5000View Product >
H-200-BStraight115 mm5.5 mm7 mm--View Product >
H-200-CTStraight125/32″9/32″9/16″--View Product >
H-200-SBStraight121/32″1/4″7/16″--View Product >
H-200-LMStraight41-1/4″25/32″7/16″1607-B5003View Product >
H-200-LAStraight41-3/4″1-15/64″7/16″1669-B5007View Product >
H-200-LLAStraight42-5/8″2-1/32″7/16″1684-B5009View Product >
H-200-RLStraight43/4″11/32″7/16″--View Product >
H-200-RIStraight-1″5/16″1/2″1618-B5505View Product >
H-200-DRStraight-1″5/16″7/16″1958-View Product >
H-23030°215/16″19/64″7/16″1611-B6004View Product >
H-230-LMA30°22″1-1/4″7/16″1638-B5200View Product >
H-24545°227/32″19/64″7/16″1688-B5200View Product >
H-245-RI45°-1-1/8″13/32″7/16″1620-B-View Product >
H-265-A65°227/32″19/64″7/16″1612-B5300View Product >
H-265-LM65°21-7/32″9/16″7/16″1623-B-View Product >
H-265-LLA65°22-3/4″2-1/4″3/8″1649-View Product >
H-29090°353/64″19/64″7/16″1613-B5400View Product >
H-290-LMA90°31-13/16″1-1/4″7/16″1606-B-View Product >

1/8"-27 Pipe Thread Grease Fittings
