Grease Fitting Couplers
Hydraulic Couplers
Hydraulic couplers provide a quick, positive leak proof connection. Hydraulic couplers are designed to grease standard grease fittings.
| SAE Number | Type | Thread | Working Pressure (psi) | Price | |
|---|---|---|---|---|---|
| SAE-4JC1 | Narrow | 1/8" NPTF(f) | 10000 | $54.00 | View Product > |
| SAE-4JC2 | Narrow | 1/8" NPTF(f) | 10000 | $48.00 | View Product > |
| SAE-HDC | Heavy Duty Coupler | 1/8" NPTF(f) | 10000 | $66.00 | View Product > |
| SAE-4JCL | LockNLube® Coupler | 1/8" NPTF(f) | 10000 | $54.00 | View Product > |
| SAE-4J90C | 90 Degree Grease Coupler | 1/8" NPTF(f) | 1000 | $54.00 | View Product > |
| SAE-BALL | Ball-Type Coupler | 1/8" NPTF(f) | 1740 | $54.00 | View Product > |
Standard Button Head Couplers
Standard button head couplers are designed to grease standard button head grease fittings with head diameters listed in the chart below. Standard button head couplers include either steel or rubber inserts.
| SAE Number | Type | Thread | For Use With | Pressure | Price | |
|---|---|---|---|---|---|---|
| SBC-POP | Standard Pull-On and or Push-On (female) | 7/16"-27 NS-2(female) | 5/8" Headed Fittings | 10000 | $96.00 | View Product > |
| SBC-HPP | Standard Pull-On (female) | 1/8" NPTF(female) | 5/8" Headed Fittings | 10000 | $85.00 | View Product > |
| SBC-PUS1 | Standard Push-On (female) | 1/8" NPTF(female) | 5/8" Headed Fittings | 10000 | $114.00 | View Product > |
| SBC-PUS2 | Standard Push-On (female) | 7/16"-27 NS-2(female) | 5/8" Headed Fittings | 10000 | $90.00 | View Product > |
| SBC-PUL1 | Standard Pull-On (female) | 7/16"-27 NS-2(female) | 5/8" Headed Fittings | 10000 | $90.00 | View Product > |
| SWIV-BHC | Swivel (Push-On) (female) | 1/8" NPTF(female) | 5/8" Headed Fittings | 3000 | $78.00 | View Product > |
Giant Button Head Couplers
Giant button head couplers are designed to grease giant button head grease fittings with head diameters listed in the chart below. Giant button head couplers include either steel or rubber inserts.
| SAE Number | Type | Thread | For Use With | Pressure | Price | |
|---|---|---|---|---|---|---|
| GBC-PUL1 | Giant Pull-On and or Push-On | 7/16"-27 NS-2(f) | 7/8" Headed Fittings | 15000 | $132.00 | View Product > |
| GBC-PUL2 | Giant Pull-On (female) | 1/8" NPTF(female) | 7/8" Headed Fittings | 10000 | $132.00 | View Product > |
| GBC-PUL3 | Giant Pull-On (female) | 1/4" PTF SAE Short(female) | 7/8" Headed Fittings | 15000 | $144.00 | View Product > |
| GBC-PUS1 | Giant Push-On (female) | 7/16"-27 NS-2(female) | 7/8" Headed Fittings | 15000 | $132.00 | View Product > |
| GBC-PUS2 | Giant Push-On (female) | 1/8" NPTF(female) | 7/8" Headed Fittings | 15000 | $132.00 | View Product > |
Metric Button Head Couplers
Metric button head couplers are designed to grease metric button head fittings with head diameters listed in the chart below. Metric button head couplers have a smaller clearance than traditional couplers which provides a tighter seal around metric button head fittings. Couplers include a rubber insert and adapter.
| SAE Number | Type | Thread | For Use With | Pressure | Price | |
|---|---|---|---|---|---|---|
| MBC-PUL1 | Standard Pull-On for Metric Button Head Fittings (female) | 1/8" NPTF(female) | 16 mm (41/64") Headed Fittings | 10000 | $102.00 | View Product > |
| MBC-PUL2 | Giant Pull-On for Metric Button Head Fittings (female) | 1/8" NPTF(female) | 22 mm (7/8") Headed Fittings | 15000 | $102.00 | View Product > |
| MBC-PUL3 | Standard Pull-On for Metric Button Head Fittings (female) | M10 X1(female) | 10 mm (25/64") Headed Fittings | 10000 | $102.00 | View Product > |
| MBC-PUL4 | Standard Pull-On for Metric Button Head Fittings (female) | M10 X 1(female) | 16 mm (41/64") Headed Fittings | 10000 | $102.00 | View Product > |
| MBC-PUL5 | Giant Pull-On for Metric Button Head Fittings (female) | M10 X 1(female) | 22 mm (7/8") Headed Fittings | 15000 | $102.00 | View Product > |
Button Head Coupler Adapters
Button head coupler adapters adapt standard or giant button head couplers to hose assemblies, or grease gun extensions.
| SAE Number | Thread | Working Pressure (psi) | Price | |
|---|---|---|---|---|
| SAE-BHA1 | 7/16"-27 (f) X 1/8" NPT | 5000 | $48.00 | View Product > |
| SAE-BHA2 | 7/16"-27 (f) X 3/8" NPT | 5000 | $48.00 | View Product > |
Flush Fitting Couplers / Nozzles
Flush fitting couplers / flush fitting nozzles are designed to grease flush type grease fittings.
| SAE Number | Type | Thread | Price | |
|---|---|---|---|---|
| SAE-MFN | Midget Flush Fitting Nozzle / Midget Flush Fitting Coupler | 1/8" NPTF(f) | $84.00 | View Product > |
| SAE-SFN | Standard Flush Fitting Nozzle / Standard Flush Fitting Coupler | 1/8" NPTF(f) | $60.00 | View Product > |

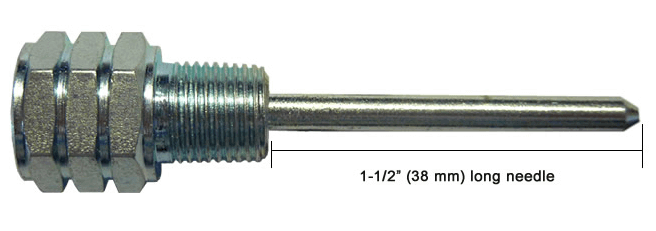

Needle Nozzles
Needle nozzles lubricate fittings in hard to reach spaces such as U-joints, CV-joints, & other hard to reach areas. Needle nozzles thread onto rigid grease gun extensions or flexible hoses. For hand operated grease guns.
| SAE Number | Thread | Needle Length (in) | Needle Diameter (in) | Tip Diameter (in) | Price | |
|---|---|---|---|---|---|---|
| SAE-NN1 | 1/8" NPTF(f) | 19/32 | 0.236 | 0.046 | $60.00 | View Product > |
| SAE-NN2 | 1/8" NPTF(f) | 1-13/32 | - | - | $66.00 | View Product > |
| SAE-NN3 | 1/8" NPTF(f) | 1-1/2 | 0.156 | 0.046 | $66.00 | View Product > |
| SAE-NN4 | 1/8" NPTF(f) | 6 | 0.156 | 0.059 | $95.00 | View Product > |

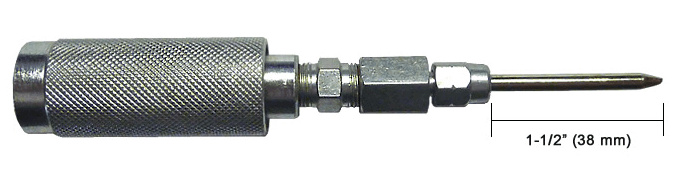

Quick Connect Needle Nozzles
Quick connect needle nozzles are a fast and effective way to lubricate a variety of fittings when multiple greasing tools are required. No threads, no screwing or unscrewing, just snap onto any standard coupler and use. Great for U-joints, recessed fittings, and hard to reach areas.
| SAE Number | Product Type | Needle Length (in) | Needle Diameter (in) | Tip Diameter (in) | Price | |
|---|---|---|---|---|---|---|
| QCC-ITN | Quick Connect Grease Needle Injector | 1-1/2 | 0.039 | 0.039 | $48.00 | View Product > |
| QCC-NNS | Quick Connect Needle Nose Adapter | 19/32 | 0.187 | 0.046 | $72.00 | View Product > |
| QCC-RTN | Quick Connect Grease Gun Seal Off Dispenser | 1-1/2 | 0.393 | 0.118 | $72.00 | View Product > |
| QCC-NNM | Quick Connect Narrow Needle Nose Adapter | 1-1/2 | 0.156 | 0.059 | $72.00 | View Product > |
| QCC-NNL | Quick Connect Needle Nose Adapter | 4 | 0.25 | 0.046 | $72.00 | View Product > |

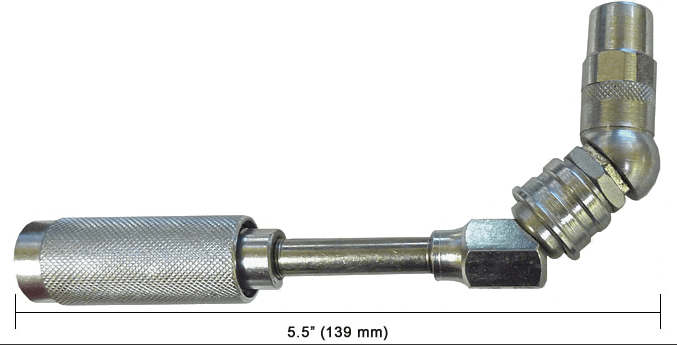

Quick Connect Couplers
Quick connect hydraulic couplers are a fast and easy way to lubricate a variety of standard grease fittings when multiple greasing tools are required. No threads, no screwing or unscrewing, just snap onto any standard coupler and use.
| SAE Number | Product Type | Jaws | Angle | Price | |
|---|---|---|---|---|---|
| QCC-HT9 | Quick Connect Hydraulic Coupler | 3 | 90 Degree | $78.00 | View Product > |
| QCC-HTR | 90 Degree Quick Connect Hydraulic Coupler | - | 90 Degree Slotted | $78.00 | View Product > |
| QCC-HT3 | 360 Degree Quick Connect Hydraulic Coupler | 3 | 360 Degree | $78.00 | View Product > |
| QCC-HTH | Quick Connect Hose with Hydraulic Coupler | 4 | Universal | $78.00 | View Product > |
| QCC-HTS | Quick Connect Coupler with Rigid Extension | 4 | 15° | $78.00 | View Product > |

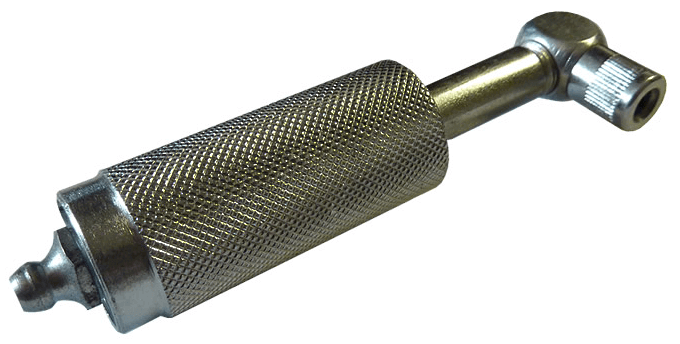

Quick Connect Push Type Couplers
Quick connect push type couplers couplers are designed to grease recessed BALL-TYPE FITTINGS. No threads, no screwing or unscrewing, just snap on to any standard coupler and use.
| SAE Number | Product Type | Price | |
|---|---|---|---|
| QCC-PTS | Quick Connect Hydraulic Push Type Adapter | $78.00 | View Product > |
| QCC-PT9 | 90 Degree Quick Connect Push Type Coupler | $78.00 | View Product > |

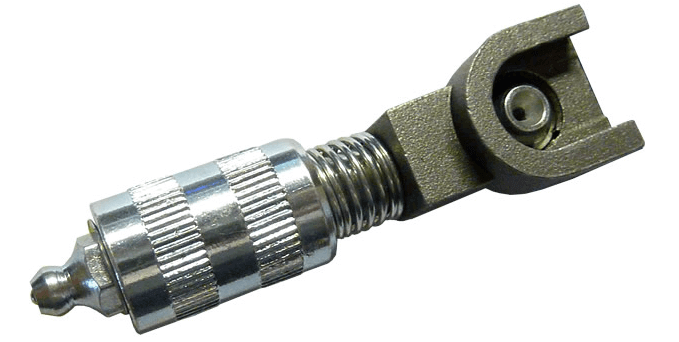

Quick Connect Button Head Coupler
Quick connect button head couplers are designed to quickly covert a standard coupler to a push on button head coupler. For use on 5/8″ (16 mm) button head grease fittings. No threads, no screwing or unscrewing, just snap on to any standard jaw type coupler and use.
| SAE Number | Material | Product Type | For Use With | Notes | Price | |
|---|---|---|---|---|---|---|
| QCC-BHT | Carbon Steel | Quick Connect Button Head Coupler | 5/8" (16 mm) Headed Fittings | For quick conversion of jaw type couplers to button head coupler | $78.00 | View Product > |

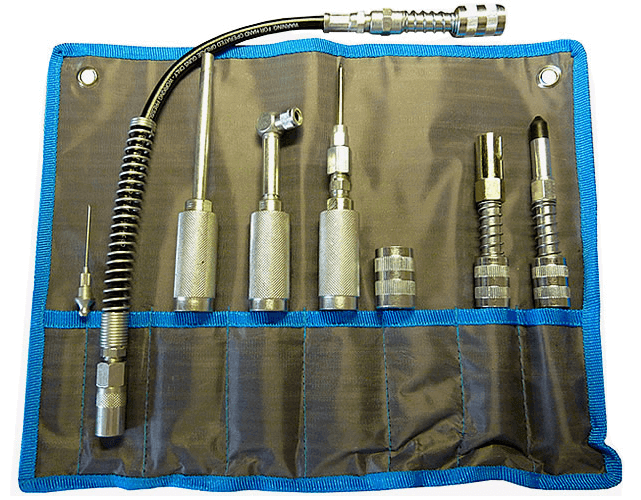

Grease Gun Adapter Kits
Part number QCC-KIT is a quick connect grease gun adapter kit that allows you to service a variety of fittings with minimal tool change time. This kit converts any standard jaw type coupler into a quick connect coupler. Couplers are organized in a heavy duty roll up sleeve.
| SAE Number | Includes | Price | |
|---|---|---|---|
| QCC-KIT | • P/N: QCC-ITN - 1-1/2" Long Injector Needle • P/N: QCC-HTH - 4-Jaw Hydraulic Coupler with 12 Inch Whip Hose • P/N: QCC-PTS - Straight Push Type Coupler • P/N: QCC-PT9 - 90° Push Type Coupler • P/N: QCC-NNM - 1-1/2" Long Needle Nozzle • P/N: QCC-LLS - Large Locking Sleeve to fit all couplers • P/N: QCC-HTR - Right Angle Coupler • P/N: QCC-RTN - 1-1/2" Long Rubber Tip Nozzle | $234.00 | View Product > |
Pin Type Couplers
Pin type couplers provide a quick, positive, and leakproof connection with pin type fittings. Pin type couplers with wings provide a pressure point to ease installation
| SAE Number | Thread | Price | |
|---|---|---|---|
| SAE-PTC1 | 1/8" NPTF(female) without Wing | $96.00 | View Product > |
| SAE-PTC2 | 1/8" NPTF(male) with Wing | $126.00 | View Product > |
| SAE-PTC3 | 1/8" NPTF(female) with Wing | $126.00 | View Product > |

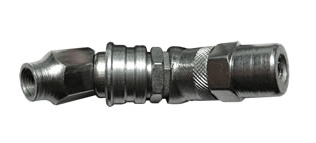

Swivel Couplers
Swivel couplers swivel 180-360 deg. Swivel couplers allow contact with fittings in reverse positions & permit the addition of pipe extensions.
| SAE Number | Product Type | Thread | Price | |
|---|---|---|---|---|
| SAE-18SC | 180° Swivel Coupler | 1/8" NPTF(f) | $72.00 | View Product > |
| SAE-36SC | 360° Swivel Coupler | 1/8" NPTF(f) | $72.00 | View Product > |

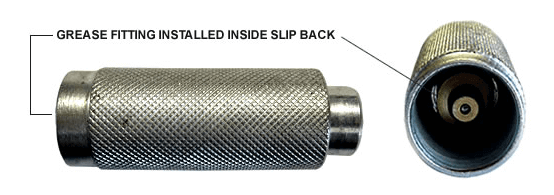

Locking Sleeve
Locking sleeves are used to adapt any 1/8″ NPT(m) extension nozzle to a hydraulic coupler.
| SAE Number | Product Type | Thread | Price | |
|---|---|---|---|---|
| SAE-SBC | Slip Back Hydraulic Coupler | 1/8" NPTF(f) | $84.00 | View Product > |
Button Head Coupler Repair Kit
SAE Products® Standard Button Head Coupler Repair Kit SBC-KIT includes replacement parts for SAE Products® "SBC" Series Standard Button Head Couplers and Alemite Button Head Couplers. Made in The USA.
| SAE Number | For Use With | Includes | Price | |
|---|---|---|---|---|
| SBC-KIT | SAE Products® "SBC" Series Standard Button Head Couplers | (10) Rubber Seals, (10) Steel Cone Washers, (10) Aluminum Gaskets | $216.00 | View Product > |

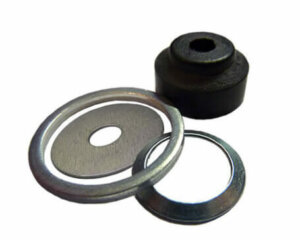

Giant Button Head Coupler Repair Kit
SAE Products® Giant Button Head Coupler Repair Kit GBC-KIT includes replacement parts for SAE Products® "GBC" Series Giant Button Head Couplers and Alemite Giant Button Head Couplers. Made in The USA.
| SAE Number | For Use With | Includes | Price | |
|---|---|---|---|---|
| GBC-KIT | SAE Products® "GBC" Series Giant Button Head Couplers | (10) Rubber Seals, (10) Flat Washers, (10) Cone Washers, (10) Aluminum Gaskets | $198.00 | View Product > |

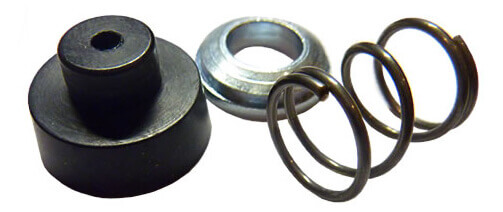

Metric Button Head Coupler Repair Kit
SAE Products® Metric Button Head Coupler Repair Kit MBC-KIT1 includes replacement parts for SAE Products® Metric Button Head Couplers MBC-PUL1 & MBC-PUL4. Made in Germany.
| SAE Number | For Use With | Includes | Price | |
|---|---|---|---|---|
| MBC-KIT1 | SAE Products® Part Numbers MBC-PUL1 & MBC-PUL4 | (1) Rubber Seal, (1) Steel Cone Washer, (1) Steel Spring | $54.00 | View Product > |
Metric Button Head Coupler Repair Kit
SAE Products® Metric Button Head Coupler Repair Kit MBC-KIT2 includes replacement parts for SAE Products® Metric Button Head Couplers MBC-PUL2 and MBC-PUL5. Made in Germany.
| SAE Number | For Use With | Includes | Price | |
|---|---|---|---|---|
| MBC-KIT2 | SAE Products® Part Numbers MBC-PUL2 and MBC-PUL5 | (1) Rubber Seal, (1) Steel Cone Washer, (1) Steel Spring | $54.00 | View Product > |
Metric Button Head Coupler Repair Kit
SAE Products® Metric Button Head Coupler Repair Kit MBC-KIT3 includes replacement parts for SAE Products® Metric Button Head Coupler MBC-PUL3. Made in Germany.
| SAE Number | For Use With | Includes | Price | |
|---|---|---|---|---|
| MBC-KIT3 | SAE Products® Part Numbers MBC-PUL3 | (1) Rubber Seal, (1) Steel Cone Washer, (1) Steel Spring | $54.00 | View Product > |
