Grease Fitting Accessories
Grease Fitting Extensions
SAE Products® extensions are used to extend the area that a fitting is being installed in.
| SAE Number | Figure | A (male) | B (female) | C (in) | D (in) | E (in) | F (in) | Alemite P/N | |
|---|---|---|---|---|---|---|---|---|---|
| SAE-43761 | 1 | 1/8" NPTF | 1/8" NPTF | 3/4 | 3/16 | 9/32 | 1/2 | 43761 | View Product > |
| SAE-43762 | 1 | 1/8" NPTF | 1/8" NPTF | 1-1/4 | 17/64 | 11/16 | 1/2 | 43762 | View Product > |
| SAE-336551 | 1 | 1/4"-28 Taper | 1/4"-28 UNF-3b | 1-9/32 | 13/64 | 1 | - | 336551 | View Product > |

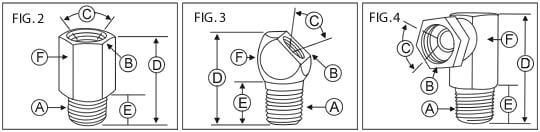

Grease Fitting Adapters
SAE Products® adapters are used to adapt different thread sized fittings together.
| SAE Number | Figure | A (male) | B (female) | C (in) | D (in) | E (in) | F (in) | Alemite | Lincoln | |
|---|---|---|---|---|---|---|---|---|---|---|
| SAE-10182 | 2 | 1/8" NPTF | 1/8" NPTF | Straight | 15/16 | 3/8 | 9/16 | - | 10182 | View Product > |
| SAE-13154 | 2 | 1/8" NPSM | 1/8" NPTF | Straight | 7/8 | 3/8 | 1/2" Sq. | - | 13154 | View Product > |
| SAE-14054 | 2 | 1/8" NPSM | 1/8" NPTF | Straight | 7/8 | 7/16 | 1/2" Sq. | - | 14054 | View Product > |
| SAE-20024 | 2 | 1/4"-28 Taper | 1/8" NPTF | Straight | 3/4 | 5/16 | 1/2 | 51942 | 20024 | View Product > |
| SAE-310912 | 3 | 1/4"-28 Taper | 1/8" NPTF | 45° | 13/16 | 1/4 | 1/2" Sq. | 310912 | - | View Product > |
| SAE-51943 | 4 | 1/4"-28 Taper | 1/8" NPTF | 90° | 1-1/32 | 7/32 | 1/2" Sq. | 51943 | - | View Product > |
| SAE-100144 | 4 | 1/4" NPTF | 1/4" NPSM | 90° | – | – | – | 1001-44 | - | View Product > |
| SAE-100166 | 4 | 1/2" NPTF | 1/2" NPSM | 90° | – | – | – | 1001-66 | - | View Product > |
| SAE-100186 | 4 | 1/2" NPTF | 3/8" NPSM | 90° | – | – | – | 1001-86 | - | View Product > |
| SAE-100188 | 4 | 3/8" NPTF | 3/8" NPSM | 90° | – | – | – | 1001-88 | - | View Product > |
Metric to English Grease Fitting Adapters
SAE Products® Metric to English adapters covert fittings from Metric sizes to English sizes.
| SAE Number | Figure | A (male) | B (female) | C (in) | D (in) | E (in) | |
|---|---|---|---|---|---|---|---|
| SAE-MEA6 | 5 | 6mm x 1mm | 1/4"-28 | 25/64 | 13/64 | 3/8 | View Product > |
| SAE-MEA62 | 5 | 6mm x 1mm | 1/8" PTF | 1 | 17/64 | 35/64 | View Product > |
| SAE-MEA8 | 5 | 8mm x 1mm | 1/4"-28 | 25/64 | 13/64 | 3/8 | View Product > |
| SAE-MEA82 | 5 | 8mm x 1mm | 1/8" PTF | 1 | 17/64 | 35/64 | View Product > |
| SAE-MEA10 | 5 | 10mm x 1mm | 1/4"-28 | 5/16 | 13/64 | 7/16 | View Product > |
| SAE-MEA102 | 5 | 10mm x 1mm | 1/8" PTF | 5/8 | 27/64 | 5/8 | View Product > |
Grease Fitting Elbows
SAE Products® elbow bodies are designed to change the angle of a specific fitting and or act as an extension.
| SAE Number | Figure | A (male) | B (female) | C (in) | D (in) | E (in) | F (in) | Alemite | Lincoln | |
|---|---|---|---|---|---|---|---|---|---|---|
| SAE-20026 | 7 | 1/4"-28 Taper | 1/8" PTF | 90° | 13/16 | 5/16 | 1/2" Sq. | - | 20026 | View Product > |
| SAE-20028 | 6 | 1/8" PTF | 1/8" NPTF | 45° | 1 | 15/32 | 1/2" Sq. | - | 20028 | View Product > |
| SAE-20029 | 7 | 1/8" PTF | 1/8" NPTF | 90° | 1 | 15/32 | 1/2" Sq. | - | 20029 | View Product > |
| SAE-247616 | 6 | 1/4"-28 Taper | 1/8" PTF | 45° | 1-1/16 | 17/32 | 1/2" Sq. | - | 247616 | View Product > |
| SAE-20031 | 7 | 1/8" PTF | 1/8" PTF | 90° | 13/16 | 9/32 | 1/2" Sq. | - | 20031 | View Product > |
| SAE-13155 | 7 | 1/8" NPSM | 1/8" NPTF | 90° | 1 | 3/8 | 1/2" Sq. | - | 13155 | View Product > |
| SAE-13129 | 7 | 1/8" NPTF | 1/8" NPTF | 90° | 1-1/2 | 7/8 | 5/8" Sq. | - | 13129 | View Product > |
| SAE-369586* | 6 | 1/4"-28 Taper | 1/4"-28 UNF-2B | 65° | 45/64 | 1/5 | 1/2" Sq. | 369586 | - | View Product > |
| SAE-369594* | 6 | 1/4"-28 Taper | 1/4"-28 | 45° | 45/64 | 45/64 | 1/2" Sq. | 369594 | - | View Product > |
| SAE-43706 | 7 | 1/8" PTF | 1/8" NPTF | 90° | 1-1/8 | 17/32 | 1/2" Sq. | 43706 | - | View Product > |
| SAE-43716 | 6 | 1/8" PTF | 1/8" NPTF | 45° | 1 | 7/16 | 1/2" Sq. | 43716 | - | View Product > |
| SAE-43718 | 7 | 1/4" PTF Short | 1/8" NPTF | 90° | 1-3/16 | 5/8 | 1/2" Sq. | 43718 | - | View Product > |
| SAE-43748 | 7 | 1/4" PTF | 1/4" NPTF | 90° | 1-11/32 | 19/32 | 1/2" Sq. | 43748 | - | View Product > |
| SAE-44701 | 7 | 1/8" PTF | 1/8" NPTF | 90° | 1 | 7/16 | 1/2" Sq. | 44701 | - | View Product > |
| SAE-51942 | - | 1/4"-28 Taper | 1/8" NPTF | Straight | - | - | - | 51942 | - | View Product > |
| SAE-51943 | 7 | 1/4"-28 Taper | 1/8" NPTF | 90° | 1 | 17/32 | 1/2" Sq. | 51943 | - | View Product > |
| SAE-310912 | 6 | 1/4"-28 Taper | 1/8" NPTF | 45° | - | - | - | 310912 | - | View Product > |
| SAE-306722 | - | 1/8" NPTF | 1/4" NPTF | Straight | - | - | - | 306722 | - | View Product > |
Grease Fitting Plugs
SAE Products® plugs are used to seal an opening where a grease fitting was once installed.
| SAE Number | Figure | A | B | C (in) | D (in) | Alemite | Lincoln | |
|---|---|---|---|---|---|---|---|---|
| SAE-1480 | 8 | 1/8" NPTF Square Hex | 39/64 | 3/8 | 15/64 | 1480 | - | View Product > |
| SAE-17831 | 8 | 1/8" NPTF Hex Socket | 5/16 | - | 3/16 | 17831 | - | View Product > |
| SAE-170008 | 8 | 1/8" NPTF Hex Socket | 1/4 | - | - | 170008 | - | View Product > |
| SAE-328224 | 8 | 1/4"-28 Taper. Hex Head | 1/4 | 3/16 | 5/16 | 328224 | - | View Product > |
| SAE-328435 | 8 | 1/4"-28 Taper. Thrd. Form Hex | - | 3/16 | 9/32 | 328435 | - | View Product > |
| SAE-700337 | 8 | 1/4"-28 Spec. Taper Drive Thread | 5/16 | 3/16 | 9/32 | - | 700337 | View Product > |
| SAE-1251 | 8 | 1/8" PTF Spec. Extra Short | 7/16 | 17/64 | 7/16 | - | 12511 | View Product > |
Grease Fitting Bushings
SAE Products® bushings are heavy-duty adapters which allow different thread sized fittings to join together.
| SAE Number | Figure | A | B | C (in) | D (in) | E (in) | F (in) | Alemite | |
|---|---|---|---|---|---|---|---|---|---|
| SAE-45120 | 9 | 1/4" NPTF | 1/8" NPTF | 3/4 | 13/32 | 1/2 | 9/16 | 45120 | View Product > |
| SAE-A112 | 9 | 3/8" NPTF | 1/8" NPSI | 17/32 | 13/32 | 3/8 | 11/16 | A112 | View Product > |
| SAE-40996 | 9 | 3/8" NPTF | 1/4" NPTF | 23/32 | 13/32 | 37/64 | 3/4 | 40996 | View Product > |
| SAE-A113 | 9 | 1/2" NPTF | 1/8" NPSI | 21/32 | 1/2 | – | 5/8 | A113 | View Product > |
| SAE-51891 | 9 | 1/2" NPTF | 1/4" NPTF | 1.12 | – | 25/32 | – | 51891 | View Product > |
| SAE-131586 | 9 | 1/2" NPTF | 3/8" NPTF | 25/32 | 17/32 | 9/16 | 7/8 | 131586 | View Product > |
| SAE-51643 | 9 | 3/4" 11-1/2 | 1/4" NPTF | 13/16 | 5/16 | 1/2 | – | 51643 | View Product > |
| SAE-320353 | 9 | 1" NPTF | 3/4" NPTF | 1-5/32 | – | 53/64 | – | 320353 | View Product > |
| SAE-320354 | 9 | 1" NPTF | 1/2" NPTF | 1.16 | – | 53/64 | – | 320354 | View Product > |
| SAE-320356 | 9 | 3/4" NPTF | 3/8" NPTF | 15/16 | – | 43/64 | – | 320356 | View Product > |
| SAE-328207 | 9 | 1-1/2" NPTF | 1" NPTF | 1.19 | – | 7/8 | – | 328207 | View Product > |
| SAE-338552 | 9 | 2" NPT | 3/4" NPT | 1.29 | - | 13/32 | – | 338552 | View Product > |
Grease Fitting Lock Nuts
| SAE Number | Figure | A | B | C (in) | Lincoln | |
|---|---|---|---|---|---|---|
| SAE-51055 | 10 | 1/8" N.P.S.M. Thread | 43/64 | 3/16 | 51055 | View Product > |
